My pleasure. Let me know if this is helpful: voxglitch/docs/modules/groovebox-advanced/pdf/groovebox-advanced-manual.pdf at master · clone45/voxglitch · GitHub
I’m happy to follow up with formatting adjustments if you have recommendations. You’ll want to download it locally, otherwise the PDF paging system in github is going to be annoying.
Thanks Bret, all ok with formatting
Bret, did you create the pdf from GitHub Markdown files? Or generally… how did you make the pdf?
(Wondering the same question) I mean, if do exists some simplify way to make pdf from github manuals lol.
In short, I had Claude Code do it for me.

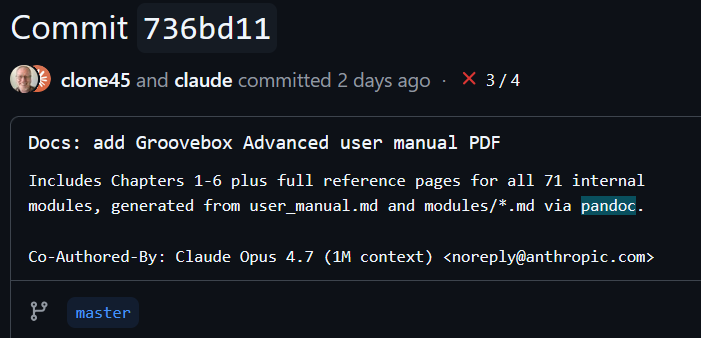

I just checked the PDF creation code into github so you can access it:
Here was it’s process:
: The pipeline is pandoc + xelatex, with a small Python prelude script and one Pandoc Lua filter. Three files do all the work:
build.py — concatenates the main user_manual.md with each of the 71 individual module reference Markdown files into a single master.md. It walks Chapter 6 (which has a per-category summary table), and after each table it injects the full content of every module it referenced, with heading levels shifted down two levels so they nest correctly. As a side pass it also rewrites the (modules/foo.md) links to in-document anchors ((#foo)) so the summary tables become clickable cross-references inside the PDF.
tables.lua — a Pandoc Lua filter that assigns proportional column widths to the three table shapes used in the manual (Inputs/Outputs, Parameters, Chapter 6 summary). Without this, Pandoc’s auto-fit chooses widths from header text length, so a short header like “Port” eats a column and the Description column ends up unreadably narrow.
Makefile — make pdf runs build.py to regenerate master.md, then runs Pandoc with all the right options.
The Pandoc invocation is roughly:
pandoc \
--from=markdown+raw_tex+pipe_tables+yaml_metadata_block \
--pdf-engine=xelatex \
--top-level-division=chapter \
--toc --toc-depth=2 --number-sections \
--lua-filter=tables.lua \
-V mainfont="DejaVu Serif" \
-o output.pdf master.md
Front matter is emitted inside build.py so it’s regenerated each build — that’s where the book class, 8 pt body font, NavyBlue links, longtable/booktabs/array packages, and title page treatment live.
System deps:
pandoc (2.9+ or 3.x both work)
a TeX distribution with xelatex — on Ubuntu I install texlive-xetex texlive-fonts-recommended texlive-fonts-extra. On macOS, MacTeX. On Windows, MiKTeX.
A few gotchas worth flagging:
Pandoc’s Table AST changed between 2.9 and 2.10; the Lua filter handles both shapes, but if you adapt this for your own work, that’s a common source of “why did my filter stop running” head-scratching.
PDF rebuilds fail if your viewer has the file open (file lock on Windows / WSL). Close the viewer first.
Page breaks between modules are raw \newpage LaTeX. The raw_tex extension in --from is what makes that work in Markdown.
Output is about 4.8 MB for the full ~70-page GA manual.

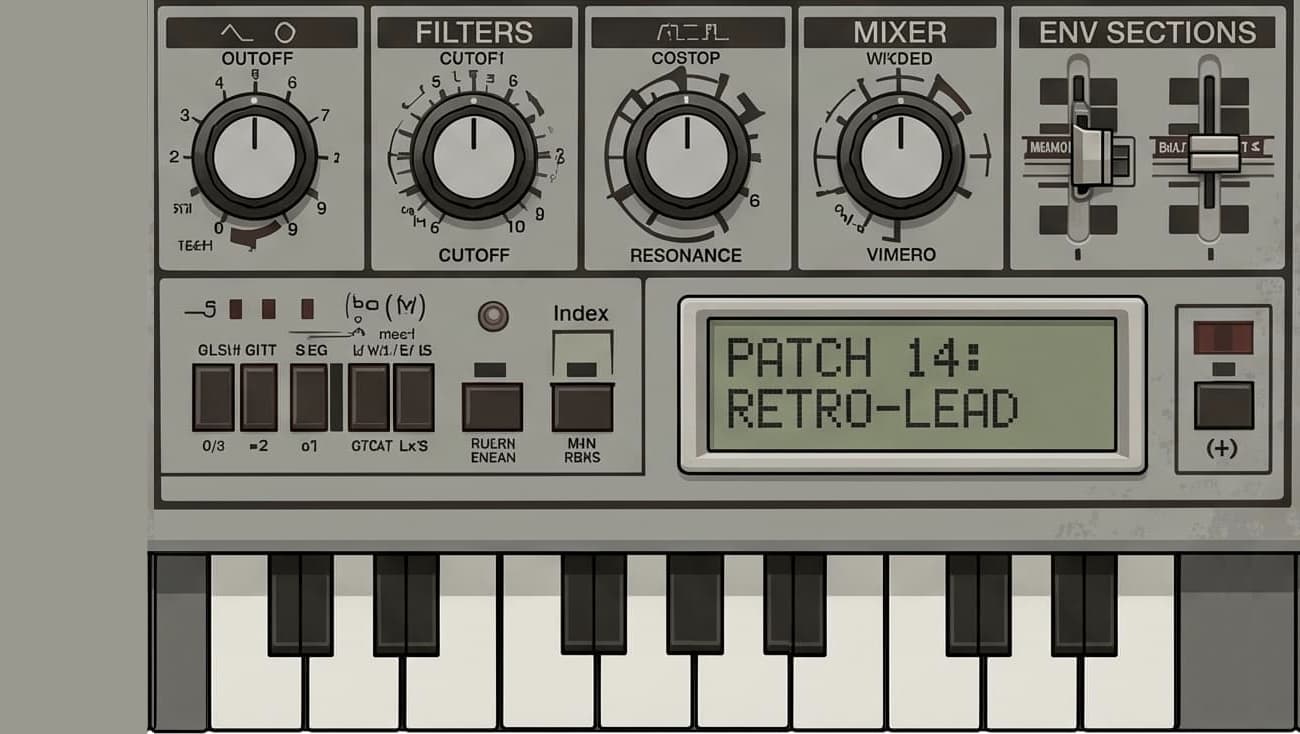

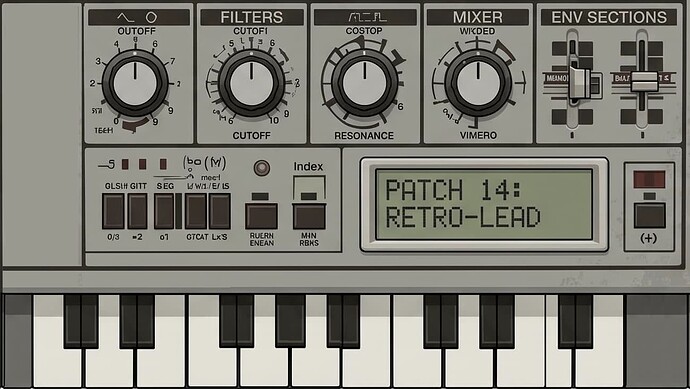

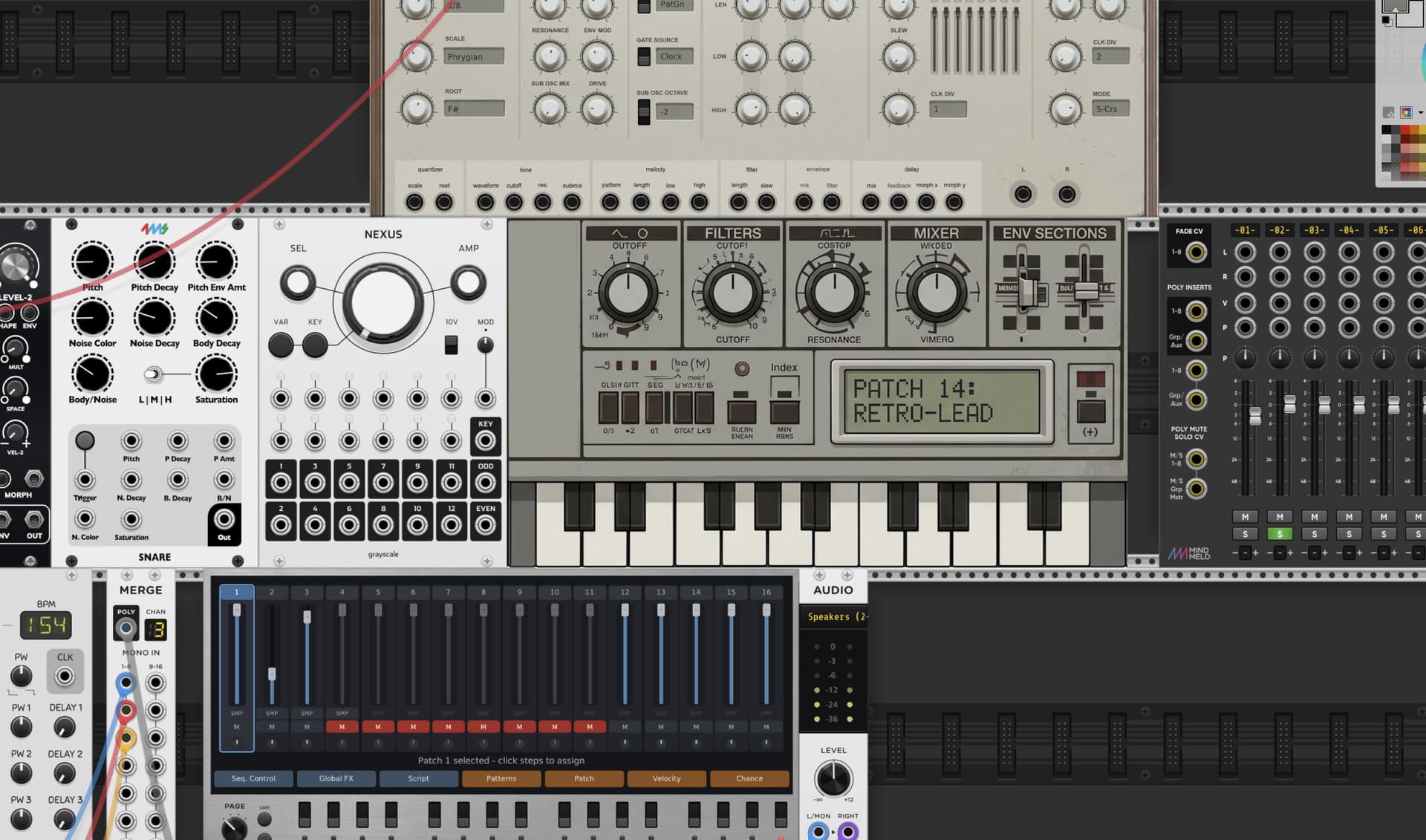

Playing around with an idea. A little mini-synth with presets and some modulation knobs. Nice and simple.
Clearly this was mostly AI generated so far, and just the “shape” of the idea is what I’m thinking about.
but:
where are the cables
No idea yet! Maybe in the top left section? Or to the left of the LCD screen?
Or maybe add a slim section at the top? It’s probably too soon to think about that for now. But don’t worry, I’ll include outputs.

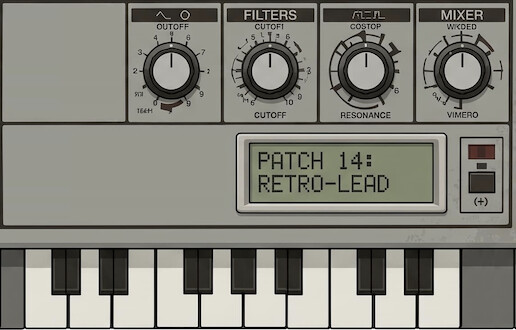

Or maybe to the left:
It should have some inputs too,
like v/oct, gate, trigger, modulation ….

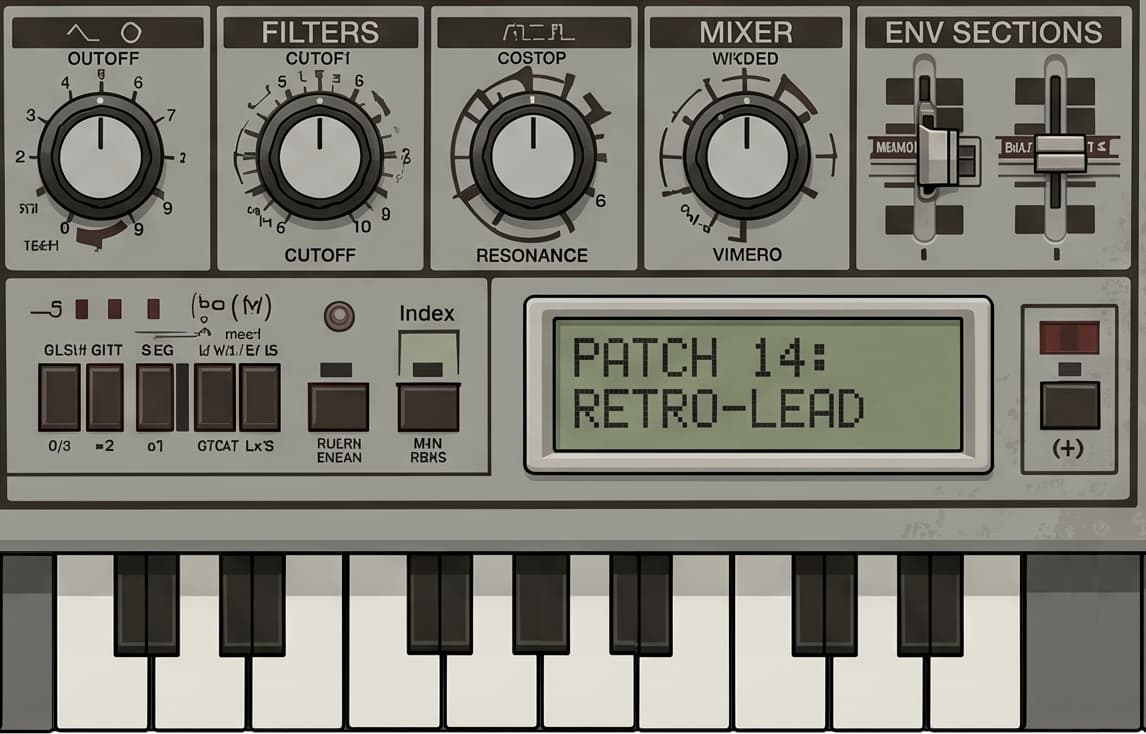

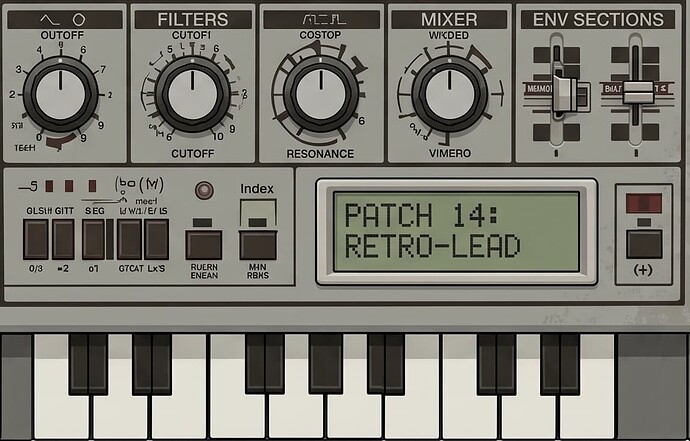

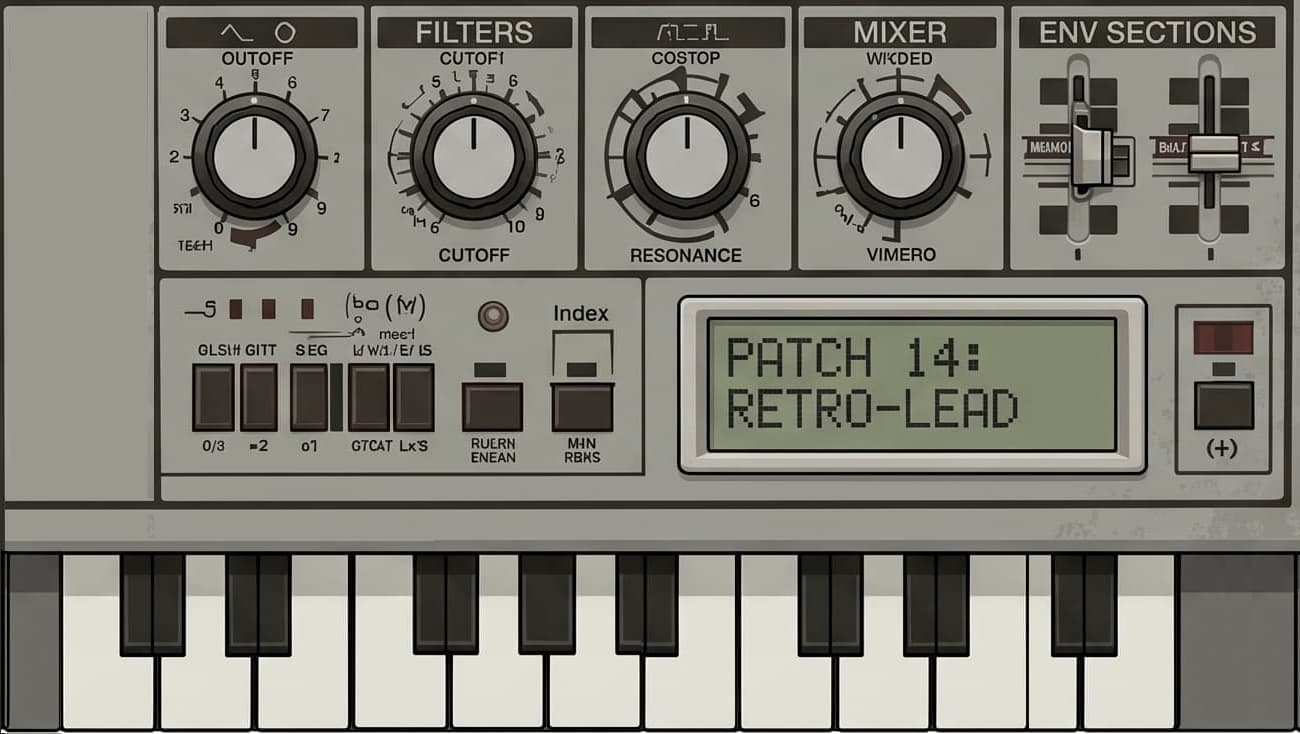

Here’s my newer revision. The are to the left should be large enough for the inputs and outputs?

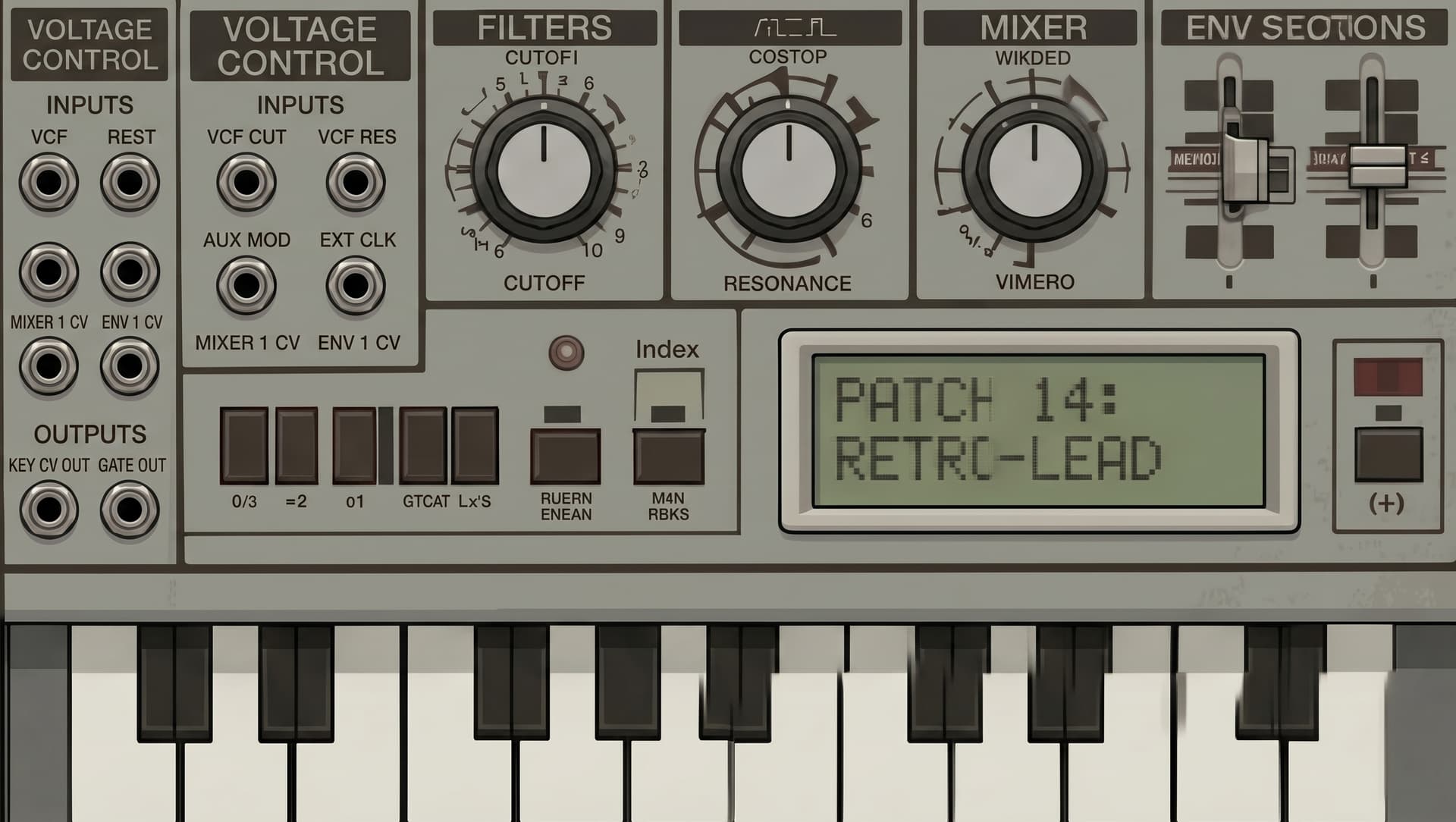

Nano Banana went a bit overboard with the idea (and still did not provide outputs). But, it’s certainly unique.
It’s also somewhat sized wrong. Putting the inputs and output at the top might help squish the design down a bit so it doesn’t feel so “oversized” compared with other modules.

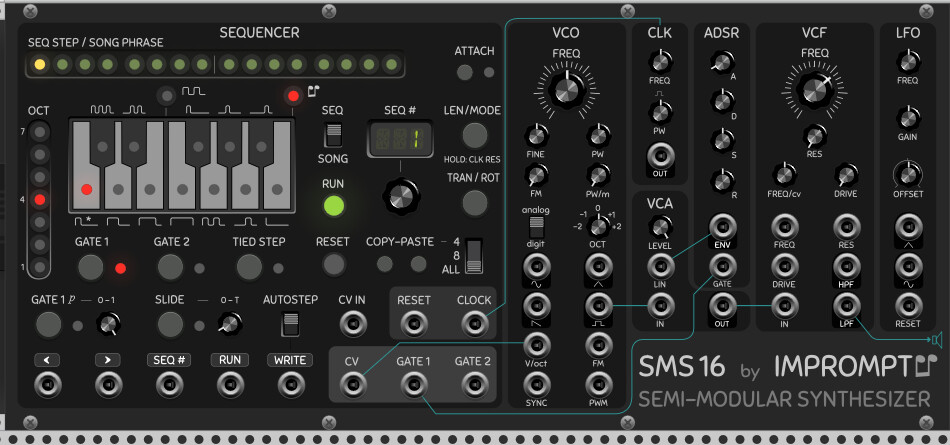

Funny looking in VCV. But I bet it is hellah useful to just grab a generic synth tone pre-rolled.
I love these minisynth concepts.
Ah, good point! Mine might be a little bit different. Patches would internally use the same patching system that I used for Groovebox Advanced, plus it would contain effects similar to the core effects used in the upcoming Effects Bank. Only some of the parameters would be exposed on the front panel.
So, I could have a base heavy wavetable patch with two sub-oscillators through a frequency shifter, then through a resonator.
Or a string oriented patch that fades in octaves of the original notes, put through a vast delay.
Each patch could be very different, because I wouldn’t be confined to VCO→ADSR→FILTER→etc. But the drawback would be that the patches would not be editable within the module itself. it would also be polyphonic.
Just thinking out loud.
I suppose it would mimic the Nord Modular, but without the actual patch editor. Ha ha ha.
this would be cool
looking back at this. think it would be cool to have another module similar to the airwindows one where u can run only one of the effects. some of the stuff (the autotune, scratch, fm warp, spectral stuff and texture stuff) would be rlly awesome if u just needed one of them !
Not a bad idea at all! If I build this, development won’t start for about six weeks, but it seems like a useful variant of the gigantic Effects Bank. It would be simple to implement since all of the effects code is already written.
I’ve decided to pursue the mini-patch-driven minisynth. I’m getting the project set up as we speak.
I’m calling it “Nori”, because it’s a bit cute and green-ish. (Although, I suppose it’s more “Matcha” colored.) I’m planning on creating a “Nori Patch Editor” expansion module for creating and editing patches. The editor will be basically identical to Digital Sequencer’s patch editor, but more fine-tuned toward synth-voice construction.
Quick status update:
