Here is a patch demonstrating the Poly S&H ASR. It only uses the sample and hold capability, as well as the oversampling option to mitigate aliasing from clocking at audio rates.
There are 4 voices generated by the Slips module, each of which is duplicated 4 times with detuning by the Venom Poly Unison and played as sine waves by the polyphonic VCV VCO. A Venom Harmonic Quantizer plays a 2nd oscillator at integral multiples of the base frequency, which in turn trigger the sample and hold to sample the sine waves, generating a stepped voltage sine wave. A second row of the S&H generates random CV to control the integral value (number of steps per cycle).
There is no VCA or envelope generator. The ringing tone is created by syncing the polyphonic oscillators with each note change, which momentarily allows all detuned voices to constructively interfere. As the detuned channels drift apart, the volume reduces, resulting in bell like tones. As the detuned waveforms continue to drift out of phase, different harmonics are accentuated through constructive/destructive interference, yielding a shifting, shimmering tone.

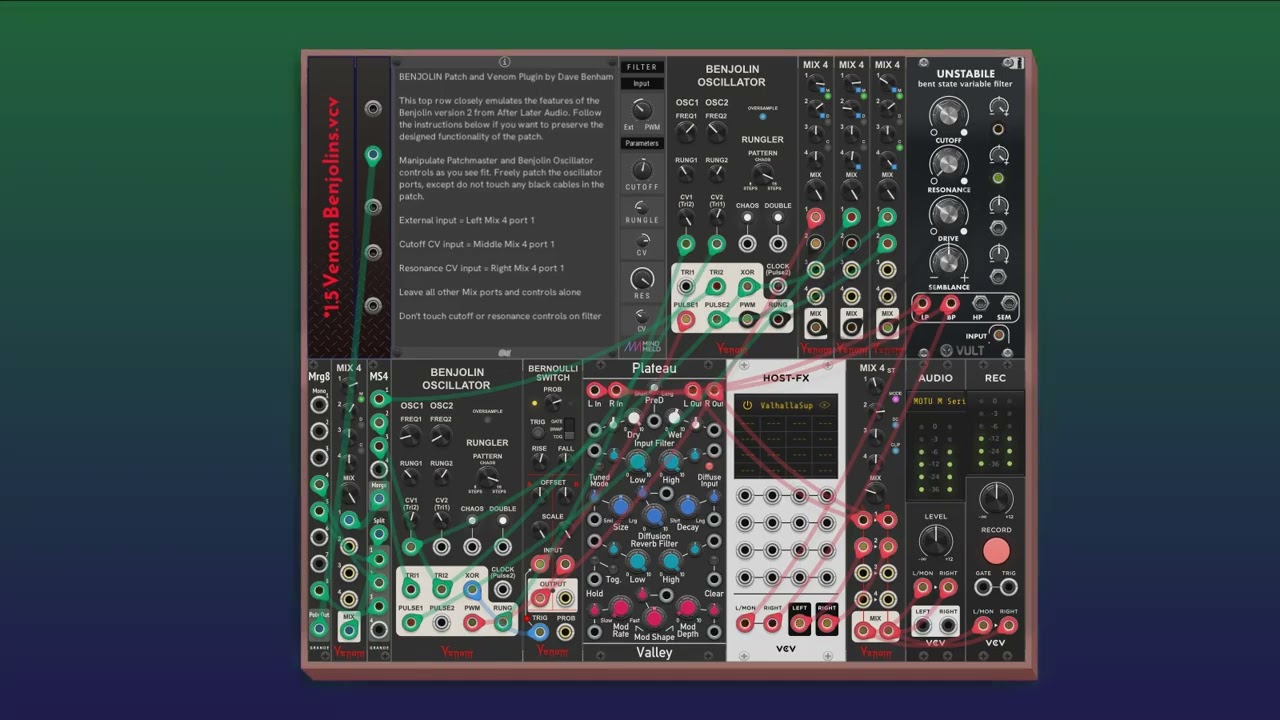

Perhaps my last demo before I release to the library - a long form experimental sound scape featuring the Benjolin Oscillator, paired with the Questionable Modules Slurp. There is lots of cross modulation. The first half tests out various filter cutoff points, but is otherwise static. The second half I freely modulate various parameters.
The top row pairs one Benjolin Oscillator with a Vult Unstabile filter to create a full Benjolin patch emulating the features of the After Later Audio Benjolin version 2. The bottom half adds the Slurp, a 2nd Benjolin Oscillator, and effects.
The audio output is a mix of the top row Benjolin PWM output mixed with one channel of the Slurp output, sent to the filter. The low pass output goes left, and the band pass goes right. Both are processed by the Plateau and Valhalla Super Massive in parallel, and then mixed for the final output.
The Host-FX is running the Valhalla Super Massive reverb/delay, using the SFX->Nebulae->Planetarium preset.
I lied - here is another demo using a pair of Benjolin Oscillators. The 45 minute Benjolin Safari video is fully autogenerative - nothing was tweaked during the full duration of the video (except for final mix level for start fade in and end fade out).
The original patch uses VCV Host-FX running Valhalla SuperMassive plugin with the SFX->Nebulae->Horsehead preset. The Valhalla SuperMassive plugin is free, but the VCV Host is a premium plugin - it is well worth the small investment.
For those that do not have the premium Host plugin, I made a version that substitutes AirWindows running the Galactic preset. It has a similar quality, but I prefer the SuperMassive version.
I updated my Blippoo Box emulator to use the Venom Poly Sample & Hold Analog Shift Register with oversampling. With that and the oversampled Venom WinComp comparator, all components of the emulator now have effective anti-aliasing. The one S&H ASR module is used for both the A and B Runglers, as well as the sample & hold output.
I was planning on creating a demo that shows the positive effect of the oversampled S&H ASR, but I stumbled on this cool evolving drone patch and couldn’t pull myself away.
Excellent! Some call the Blippoo Box a “patch in a box”, so all you need now is a box well done Dave!
I have been planning to record a demo version with my version -which does not differ much from yours now, especially since we are using the same modules. I always get drawn into just playing it and get distracted lol so the videos get too long. I gave up recording a demo and just play it nowadays.
For this demo I use both sample & hold and shift register functionality of the Poly S&H ASR. This video also demonstrates the profound difference the oversampling can make when triggering the S&H at audio rates. This video also demonstrates a cool technique where detuned polyphonic unison voices generate bell or plucked string like tones each time the detuned voices are synced.
This module allows you to rename any foreign parameter control or port, as well as set a custom default for any foreign parameter. Nearly all Venom modules have these capabilities built in. This module brings that functionality to foreign modules. It works by extending the context menus of the foreign parameters and ports - there is no need to interact with the Widget Menu Extender itself, it just needs to be in the patch.
I am excited about this module - I think it can be of great use to any VCV Rack user, regardless what type of patching they do.
It can be a great help when working with a large patch, helping you keep track of the patch specific purpose of controls and ports. It is also a simple way to document a patch that is shared with others.
Or for performance, you can set a custom default for an important control, tweak the value to add variation, but then instantly and reliably get back to your custom default at will.
I would like to add the parameter lock feature, but there are technical issues that prevent that feature from working properly on foreign parameters configured as switches.
I hope some people try this module out and report back if there are any issues. But it is working really well for me so far. I have even tested VCV Pro with multiple VCV plugins running within a DAW.
Barring any reports of critical bugs, I plan on submitting Venom v2.6 to the library by the end of the week.
This module has been a dream of mine for a long time. I could not have created this module without the information shared in the following thread:
Much respect for these modules! Some of them are really “pushing the envelope” in terms of polyphony and anti aliasing. That alone makes them super unique!
btw, I’m not a fan of pushbutton that you have to push multiple times to cycle through the options. I know it’s “more modular like”, but to me it’s a second rate UX. Most of these things you have to push the buttons a bunch times to see what the choices are. I don’t think any desktop or web software does this. Mind you, I’ve done it myself sometimes!
On modules I’m working on, option sets (modes) are on a knob backed by a switch param. This means the right click on the knob gives a menu with direct access to the options. People who like to knob twiddle can spend their time passing through the modes, and others who are happy to not be stuck in a skeumorphic paradigm can go faster (:-)).
Thanks! I do try to make sure each module brings something (or many things) unique to the table.
That is what the right click (command click) button context menu is for - it lets you see all the options at once and select the one you want immediately. If the buttons did not have the context menu, then I too would not be a fan.
