Befaco modules development blog

Hi all,

I’m starting a development thread for the ongoing work with Befaco (distinct from the announcements thread which is just for release updates), I hope this makes sense. This thread will be more for technical details and feedback from beta testers.

Since the last release (Percall, Kickall, Hexmix, Chopping Kinky), I’ve been working hard to bring the next batch of modules to VCV rack. This upcoming release (v.1.2.0) should see:

  • Muxlicer (and special friend!?!)
  • Morphader
  • STMix
  • VC ADSR
  • Sampling Modulator

join the ranks. You can follow the release progress on the github issue here.

I’d like to spend a bit longer with the modules in beta than last time in order to stress-test / catch as much as possible, but they will hopefully end up in the library before too long. The most recent dev build can be found here.

If you are interested, please take a look, and let me know if you have any feedback (either in this thread, or on the github issue). I’m particularly keen on checking things like polyphony (Muxlicer/Morphader/STMix), or anti-aliasing (Sampling Modulator) are done correctly. I’ve also created a “Differences from hardware” section in the readme.

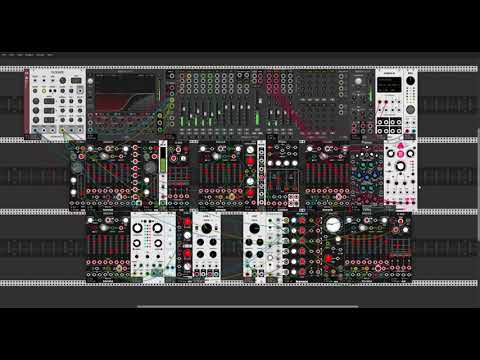

Finally, here’s a little preview video of a few of the new modules in action:

18 Likes

Awesome!

If there is any aliasing in any modules I know that there is one dev that will let you know.

4 Likes

I am hoping for @Squinky.Labs keen eye tbh :wink:, it’s a little hard to know how best to handle anti-aliasing in a module that is effectively a Sample Rate reducer. I’ve gone for the MinBlep implementation on Clock / Trigger out (with DC removal), and minBlep for the “Out” of S&H, but I’m not 100% sure what exactly is best to do there (it should sound “clangorous”).

2 Likes

I don’t know it there s a good answer for that. If it doesn’t alias, then it’s just a low pass filter. Sure glad you are paying attention to dc offset!

2 Likes

Muxlicerrrr!!! Thanks so much for your work!

1 Like

It’s an amazing module, but the hardware has things that are tricky-to-impossible in software (various things like “push and twist” vs “twist” for different knob functions, momentary switches, and 8-to-1 vs 1-to-8 for the switch).

Hopefully I’ve managed to stick to the spirit of the original with my compromises!

1 Like

Good job Hemmer, thank you!

Let’s stop with the jabs all around. I assure you that Bruce is not the only one who cares about low aliasing, or sound quality in general. Each to their own and there’s plenty of room for all our different concerns and priorities.

5 Likes

Looks like great work on these! thank you.

From your notes on differences with Hardware:

" * The hardware Muxlicer assigns multiple functions to the “Speed Div/Mult” dial, that cannot be reproduced with a single mouse click. Some of these have been moved to the context menu, specifically: quadratic gates, the “All In” normalled voltage, and the input/output clock division/mult. The “Speed Div/Mult” dial remains only as a tap-tempo button."

Totally understand why some interface elements need to be treated differently in VCV and just a thought but could the “Speed Div/Mult” dial not act as both a ‘tap tempo button’ (when clicked) and ‘input/output clock division/mult’ when the dial is turned (click/hold/move)?

For “push and twist” vs “twist” for different knob functions mentioned above - perhaps you could use a keyboard modifier like alt/option to be the ‘push’ part of “push and twist” (if you have not solved that in another way already). Sometimes it can be good to have both a context menu way of doing things (for visibility when people are new to the module) and a keyboard modifier too (for speed when people become familiar with it).

3 Likes

Yeah these are good points, I’ll have a play to see if something can be worked out. I quite like the either/or approach (context menu or modifier). Control-Click is out (that’s fine tune), but maybe Alt/Option as you say.

I’d normally try to avoid that multiple functions per-knob as not everything will work (e.g. Stoermelder uMap wont be able to function with the Alt mapping), but in this case it sounds like a sensible compromise.

I agree wholeheartedly. I like to make keyboard instruments with as few uncontrollable artifacts as I can manage. I’m happy to have Bruce in my corner championing this cause.

2 Likes

This post was flagged by the community and is temporarily hidden.

Alt is not a good choice for a click modifier. Alt-click will pan the rack in Rack 2 as an alternative to middle-click drag. Some keyboards don’t have an Alt key. Fewer modifiers for users to worry about is best. And fourthly, there’s no reason you can’t just use left-click to trigger the action when the mouse has not moved outside a distance threshold.

In general, the less custom UI code you have to write for generic interaction, the better. Let Rack handle interaction consistently so users can learn one behavior instead of a different behavior for each module.

4 Likes

Ah ok good to know, and I know what you mean - if I start having to write janky UI code it feels like I’m going down the wrong path.

And fourthly, there’s no reason you can’t just use left-click to trigger the action when the mouse has not moved outside a distance threshold.

This is true, say for tap tempo versus normal drag of the knob (indeed I got this from your initial work on Muxlicer - thanks!), but the press and twist I think doesn’t have a natural software mapping (hence the Alt-combo).

In this scenario, would the prefered outcome be:

  • tap the knob for tap-tempo
  • drag the knob for main clock mult/div
  • go to context menu for output clock mult/div (rather than alt+drag)

?

Context menu is good for weird electro-mechanical hardware emulation, especially if the value you’re controlling is discrete.

I’ve made clicking-and-releasing on a Knob call onAction() in Rack 2, so you’ll be able to simply override to to receive button presses. To disable double-click from resetting the knob, override onDoubleClick() to do nothing.

However, for your use case, you want to handle mouse-down which is better for tap-tempo, so I’d use a menu item for that as well. You can consume(NULL) the Action event in the MenuItem to prevent the menu from closing.

1 Like

OK I think I follow, might be worth me refactoring / revisiting once Rack 2 is available.

For now though, I’ve pushed an update that moves tap tempo to context menu (only enabled if no clock in). To be honest I think the tap tempo is less relevant in VCV with there being so many clock sources, but I’ve left it in for completeness.

Now the Mult/Div knob is purely used for division/mult of the Input Clock. Output clock is just in the context menu (also Input Clock for consistency, but in sync with the knob), and removed Alt-Drag. Hopefully this is a sensible compromise. It seems more playable to me than before, and no multiple function per knob confusion.

6 Likes

Pushed a few more changes (nightly build here as always):

Muxlicer/Mex

  • now can have arbitrary numbers of Mex expanders (chained expanders are actually quite easy if they only need read-only access to the mother module)
  • fixed reverse normalling for when we are in 1-to-8 switch mode (I spotted in hardware that “All In” essentially becomes “All Out”)
  • fixed reset logic
  • more consistent “quadratic mode” for gates (now applies to all of clock in/clock out/gate mode)

STMix

  • fixed polyphony logic mistake
15 Likes

Sometimes I want a signal in [0, 1] for control reasons. If all PWM osc are DC corrected, that leaves me in a bad place. Example use case: gate a saw with a twice frequency PWM to simulate the Alpha Juno 2’s PWM saw mode. The signal would need to be DC filtered later, but I’d really like to multiply that saw by a minblep pulse in a fixed range.

so maybe the best would be an option for AC/DC coupled, like my Shaper always had? But with no choice, wouldn’t AC be a better general default than DC?

1 Like

Bog’s pulses don’t seem to have a duty cycle dependent shift, but if that gets fixed…

I’m just trying to keep the math cheap. :stuck_out_tongue_winking_eye:
