VCV Rack VCF - BP?

Development
21

Uhm, but while they are configured with same amp scaling, ranalyzer display diagonal response before 8k, analyze a horizontal one (just for example). Am i missing something?

22

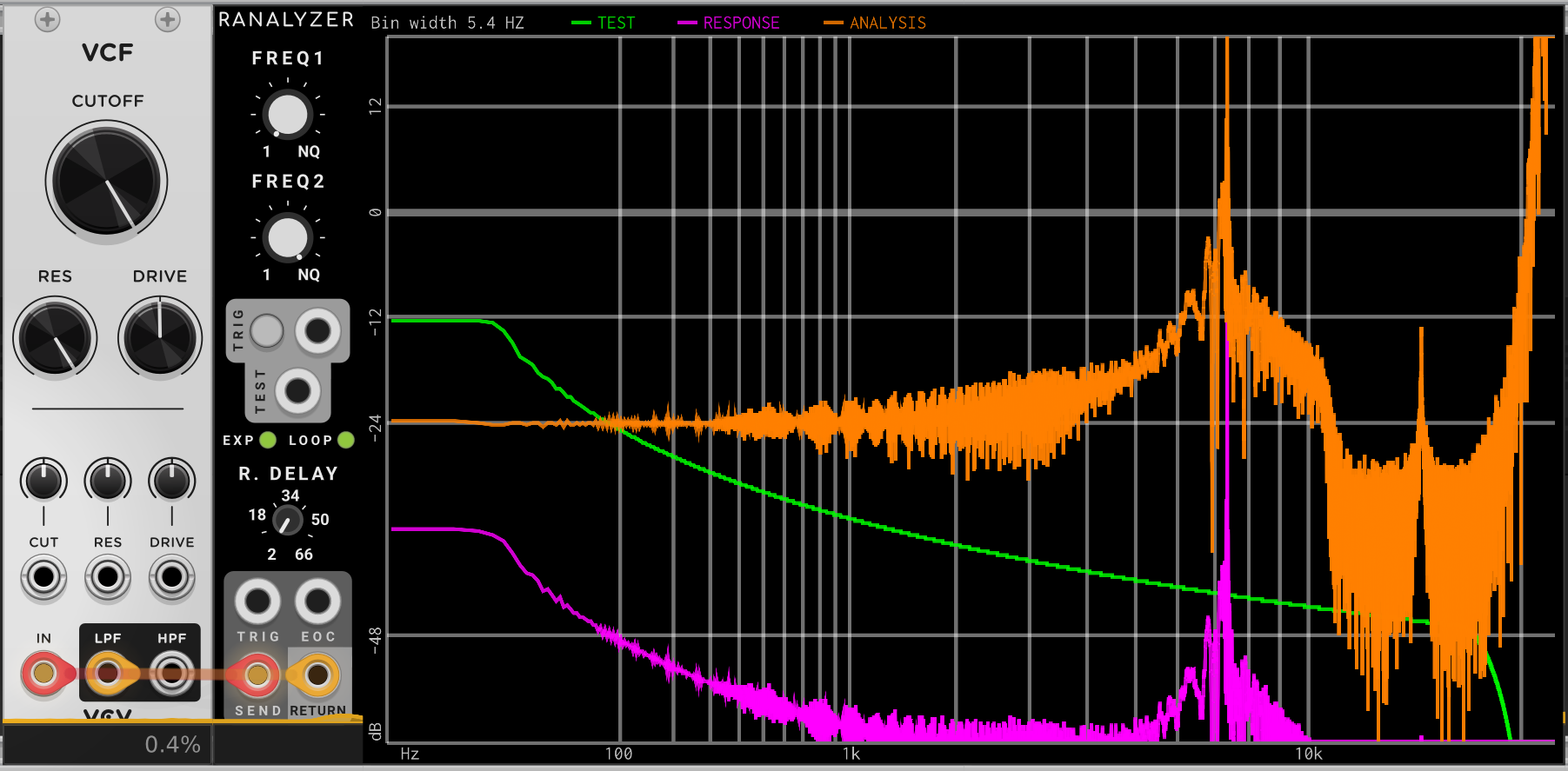

uhm, you are looking at the wrong line. It’s the orange line that is the frequency response.

image1803×887 233 KB

23

Also worth noting that this filter has nonlinearities so frequency response is technically not defined, especially at high drive or resonance where those nonlinearities are most “activated”.

24

Yes, for sure.
