I’d like to control several Bogaudio 8:1 with a single CV coming from a Seq3. I’d like to control 10 8:1 specifically. So I figure I need to split the CV (0-10V) so that with 0-1V values I get 0-10V from the first output, which I send to the first 8:1. With 1-2V values I get 0-10V from the second output, which I send to the second 8:1, etc. What modules I need? Thanks

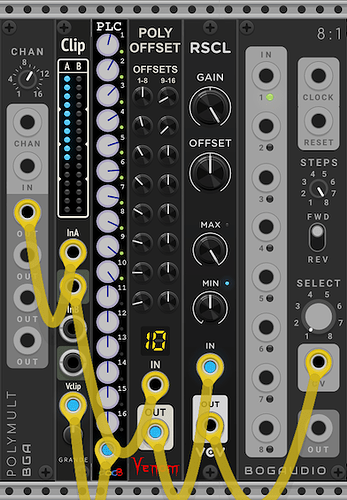

10V split with poly switch.vcvs (8.4 KB)
10V for 10 switches.vcvs (16.5 KB)
There may be a simpler way to do this but this is what I came up with, hope it helps! Cheers
I’m pretty sure THE CAGE form NYSTHI can do that, but there’s no manual and I could not figure it out properly
I don’t post a screenshot because I don’t want to give bad ideas lol
1 Like

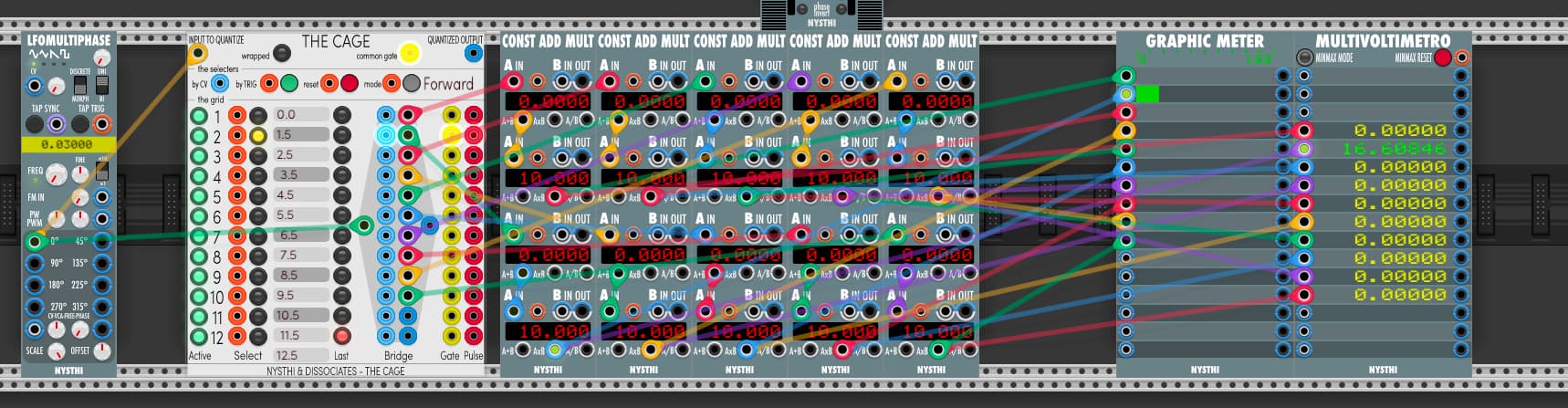

yes, the cage can be used, set the stages to 1v and the ouput stages you connect a offsett-scaler.
Input in top left grid set to [0, 1.5, 2.5, 3.5, 4.5… ] input in multiplexer multiplexer out to a set of scaler-offsetter (step 1 offset: 0, scale 10, step 2: offset -1, scale: 10, step 3: offset -2, scale 10…)
2 Likes
