Hi folks.

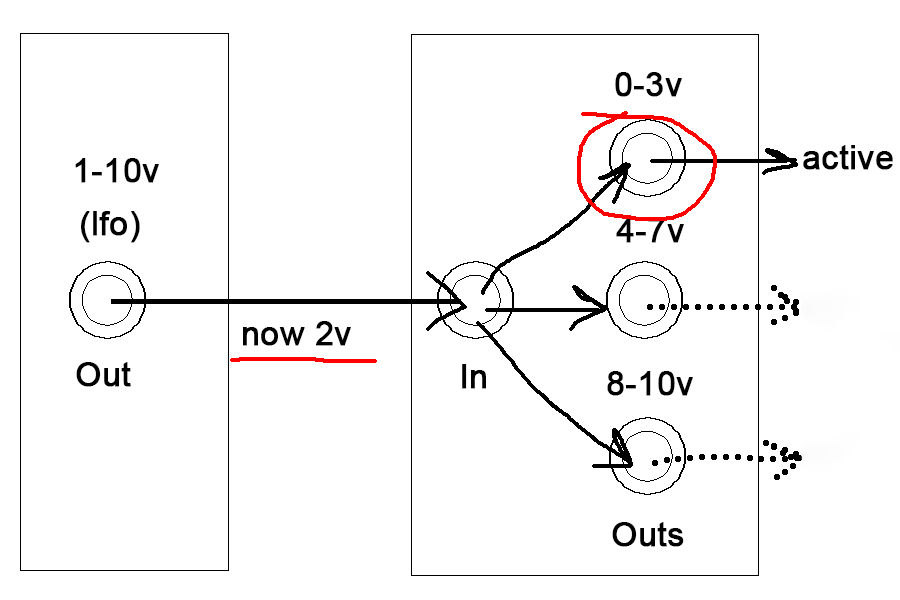

Noob question here. All as at picture lol.
Need simple separating of incoming signal by value to different output.
What module\type of modules does that ? Do exists simple single module to do this ? (with multiple outputs with adjustable dividing range each)
Windowed comparator.
Try the Venom WinComp2 , you can set the window to your crossover voltages and get gates for over, under and inside the window. It has much more capability but that is the simplest use case.
Cool thanks, will try.
I did check - this type exactly what i meant for, thanks.
But now wanted to expand task lol: output not in form of just static 10v, but with preserving incoming realtime’ changes (in this active range ofcourse).
Or by other words: currently, comparator offer some kind of converting to pulses, right. Whereas let’s be the same separation, but with no converting, rather near to clean splitter (with signal “as is”).
(or maybe there is some technical contradiction here, apologize in advance)
a sequential switch?
Just send each gate out from wincomp to vcas for each signal you want governed by the crossover voltages. Like if you want the actual cv of the signal driving the comparator, use the venom VCA mix, connect the signal in three channels and send the gates to those channels respectively, take the direct outs of each channel and send where you like, each turned on/off by the wincomp gates, and the mix output would have the same signal as the original.
Only has two divisions, but you can use several copies of the module.
Oh dmn. Thank you guys, hm will check.
the cage
