Scope: how do I sync to whole LFO width?

[q8fuel]

Hi,

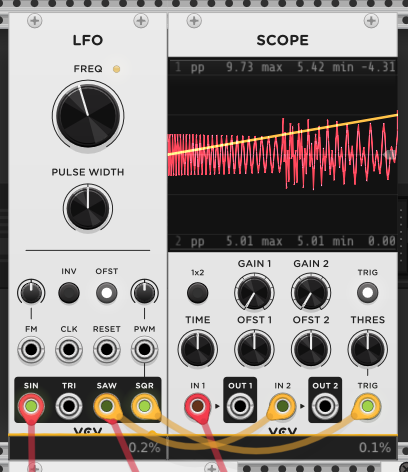

here’s my attempt to catch a whole LFO cycle windows using Scope (LFO at 1hz here):

But how you can see, it only “snap” to half cycle (saw is going to 0 to 10V, but I only see 0 to 5v). So miss half window. In fact I only see “half” of the input wave.

What’s wrong? Is not correct to sync with SQUARE wave?

Thanks

[Yeager (Peter Vos)]

Use the time parameter ( to zoom in or out)

[q8fuel]

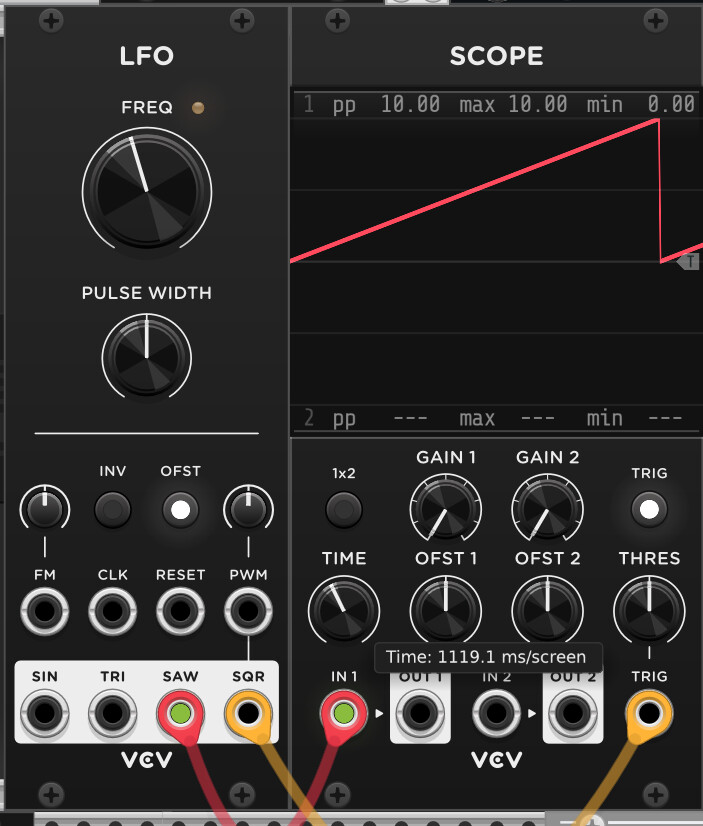

Oh nice, just set 1000ms (1 sec) and I’m do it). I guess it was “auto-sized” when use Trigger. Thanks
