Pamela Workout external clock

Plugins & Modules
1

Hello everyone,

I’ve just bought Pamela’s Pro Workout module. I connect Clocked clock output into Clock in of Pamela, Run from Clocked into Pamela’s Run input, but nothing happens. No start, not clock syncing. Am I missing something? Inputs on Pamela are well assigned.

Thanks.

2

Pams Pro expects a 24ppqn by default. Are you sending 24x pulses from Clocked?

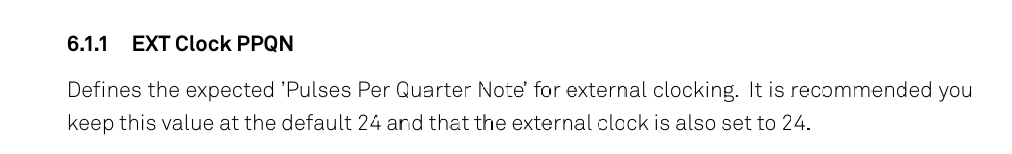

image1012×154 10.5 KB

Also, Run isn’t the same as Start/Stop, refer to the manual

3

Also be aware, that in the hardware version at least, Pam’s accept at the most 5v inputs, I don’t know if it’s the same for the software version. So you might have to scale Clocked’s 10v signal down to 5v before Pam’s.

4

Thank you. Clock is already at 24 ppqn. I changed th Run input on Pamela into CV, and now it starts, but the tempo divisions of the different outputs are not respected. They only deliver the main clock BPM.

5

Thanks, I tried both 5 and 10v signals from the contextual menu. No difference. Now is clocked, but modifiers are not working.

6

Just to clarify, I’m using the VCV module, not he hardware one.

7

Solved. I put 1X instead of 24 on the External Clock input and everyhing works fine now.

Thanks.
