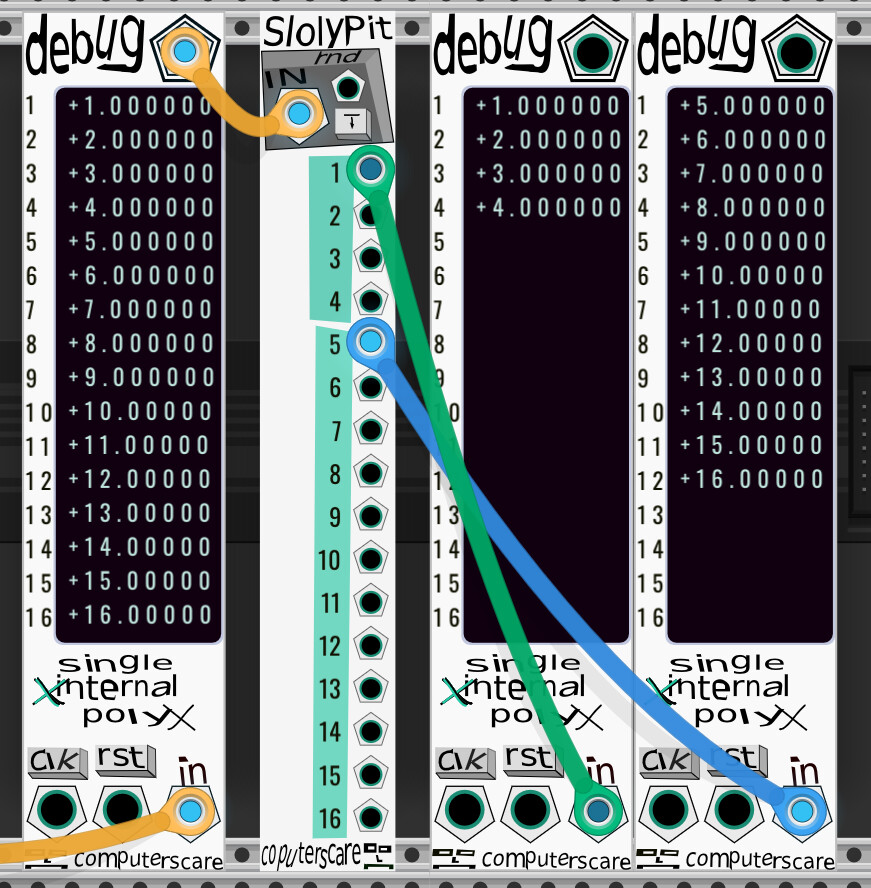

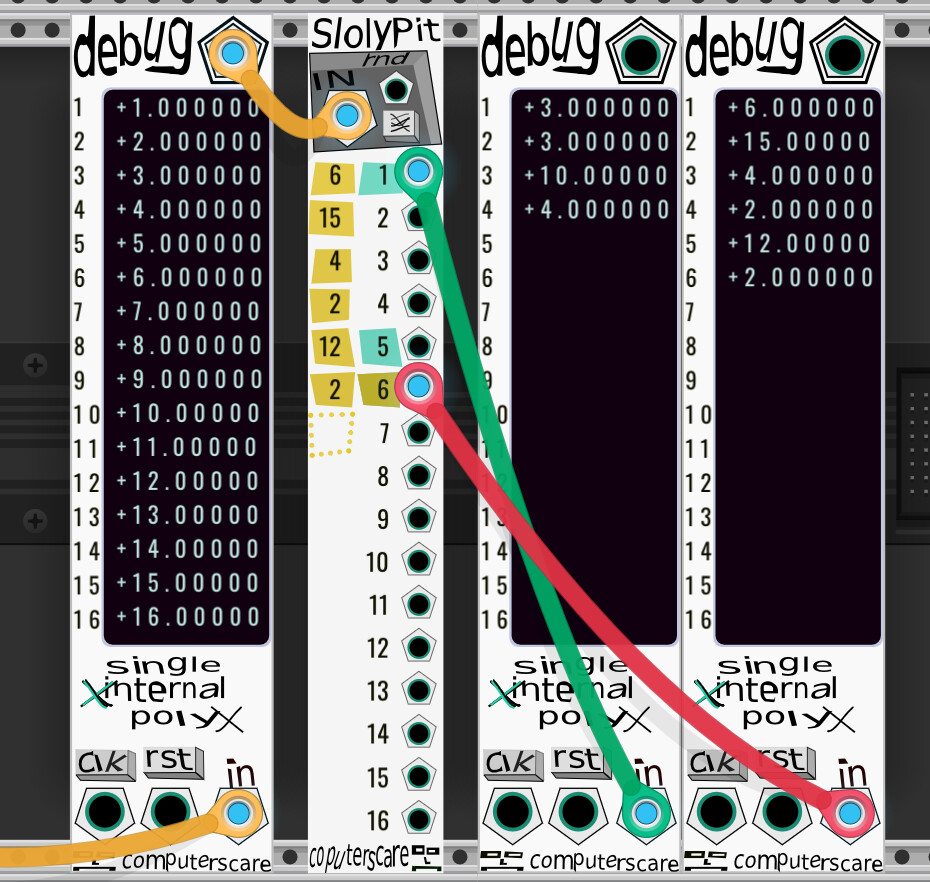

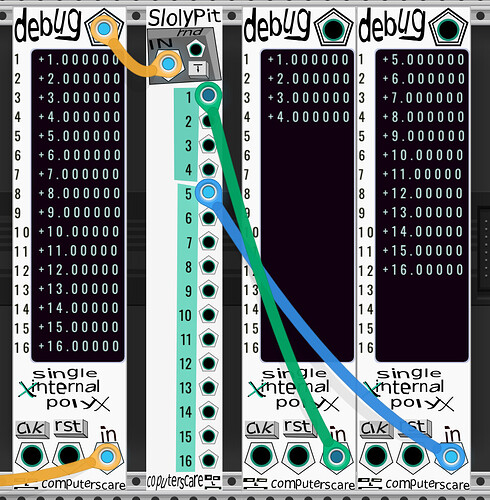

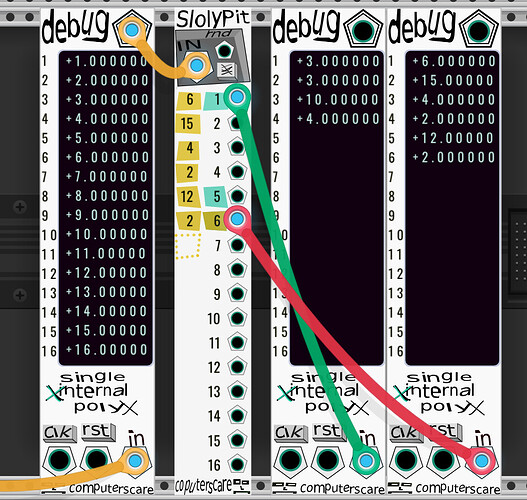

I’m working on a new polyphonic utility module, Sloly Pit. I was always wanting to extract (for example) 3, 2-channel signals from a single poly signal, and I was sick of using multiple “split” modules. Sloly Pit will split the incoming signal wherever you plug in the output cables. It also has a “custom” mode which allows 16 fully independent polyphonic re-routings from the single poly input.
Manual Here: computerscare-vcv-modules/doc/sloly-pit.md at dev-v2.3 · freddyz/computerscare-vcv-modules · GitHub
You can try Sloly Pit in the v2.3.0 release candidate: Release Computerscare Modules v2.3.0 · freddyz/computerscare-vcv-modules · GitHub
2 Likes
This looks great, looking forward! You poly modules are fire
.
Not sure I fully understand, but couldn’t Grande’s PolySplit do that?
1 Like
Yeah PolySplit can do that but with a maximum of 4 output cables. Also I wanted something just a tiny bit faster, in Sloly Pit the split points are determined by where you patch the outputs, saving a couple clicks
1 Like
Ya, that makes sense. Having more than 4 outputs is a real plus
.
1 Like
Another new polyphonic utility module coming in the next 2.3.1 release: Mely Porge. Polyphonic Merge/Insert/Mix/VCA/Compare tool. Basically a merge with a number of additional features.

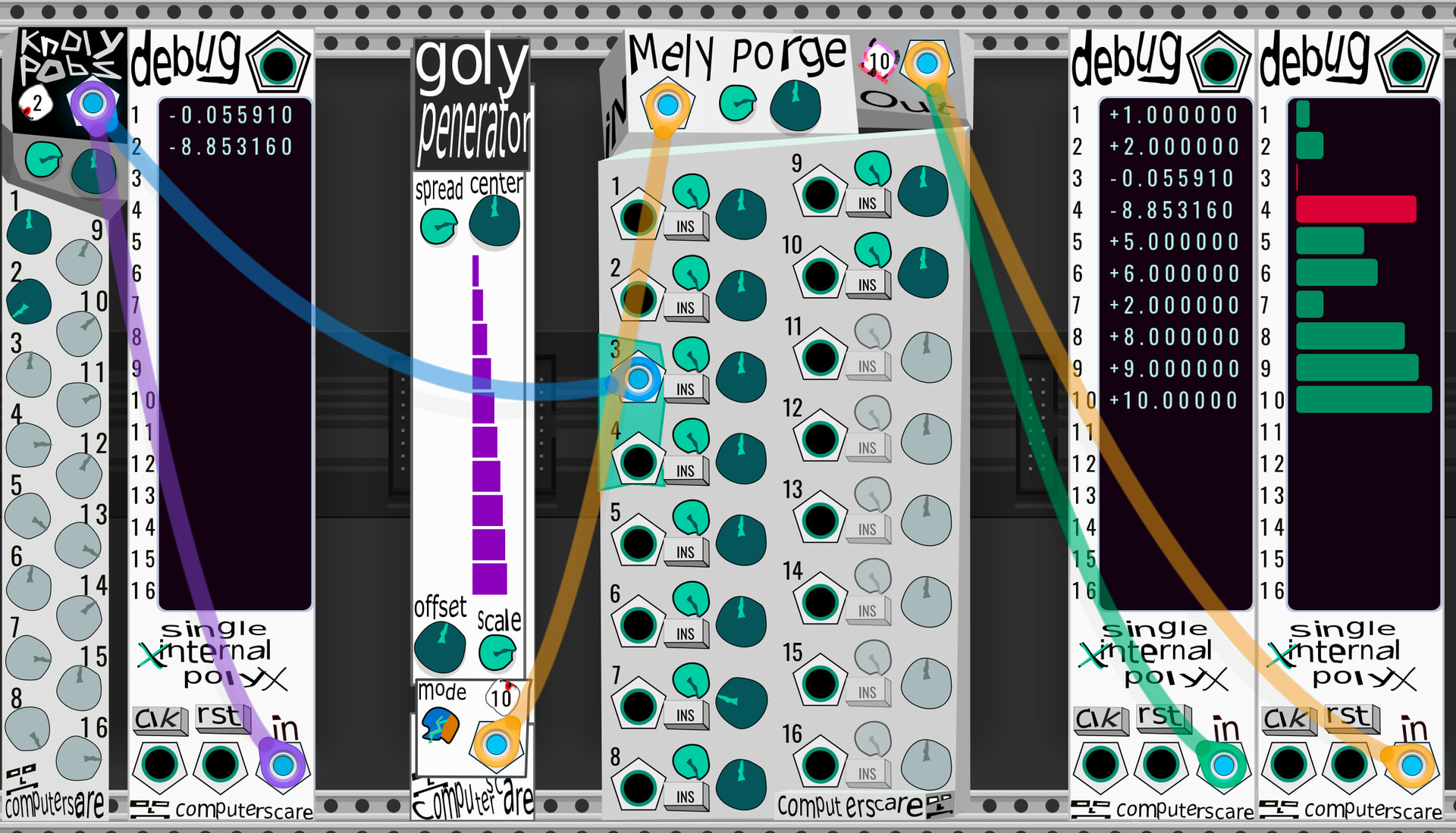

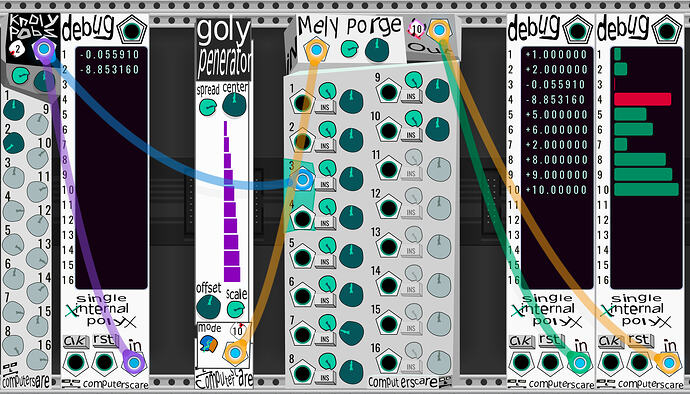

In this screenshot, we have a “main” input 10 channel polyphonic signal, and a 2 channel signal patched to ch3 in “insert” mode. The 2ch signal replaces channels 3/4 of the final output. Also demonstrates a per-channel offset (channel 7 subtracts 5v from the final output)
Each channel allows the following modes of operation:
- Add: sum the main input with the channel input
- Insert: pass the main input unless the channel input is patched, then replace it
- Crossfade: crossfade between the main input and channel input using the attenuverter knob
- VCA bipolar: multiplication; main input is the signal, channel input is bipolar gain
- VCA unipolar: multiplication; main input is the signal, channel input is unipolar gain
- Minimum: output the lesser of the main input and the channel input
- Maximum: output the greater of the main input and the channel input
- Compare: output
10v when the channel input exceeds the main input, otherwise 0v
Mely Porge Manual

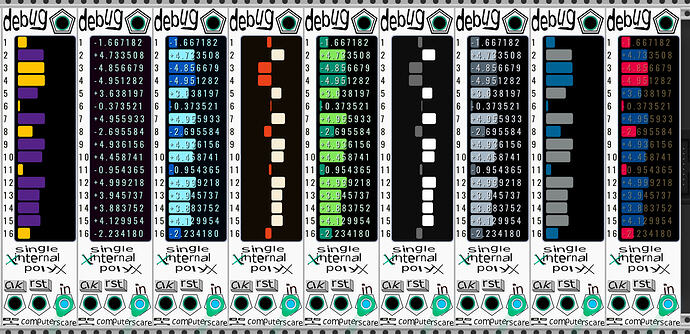

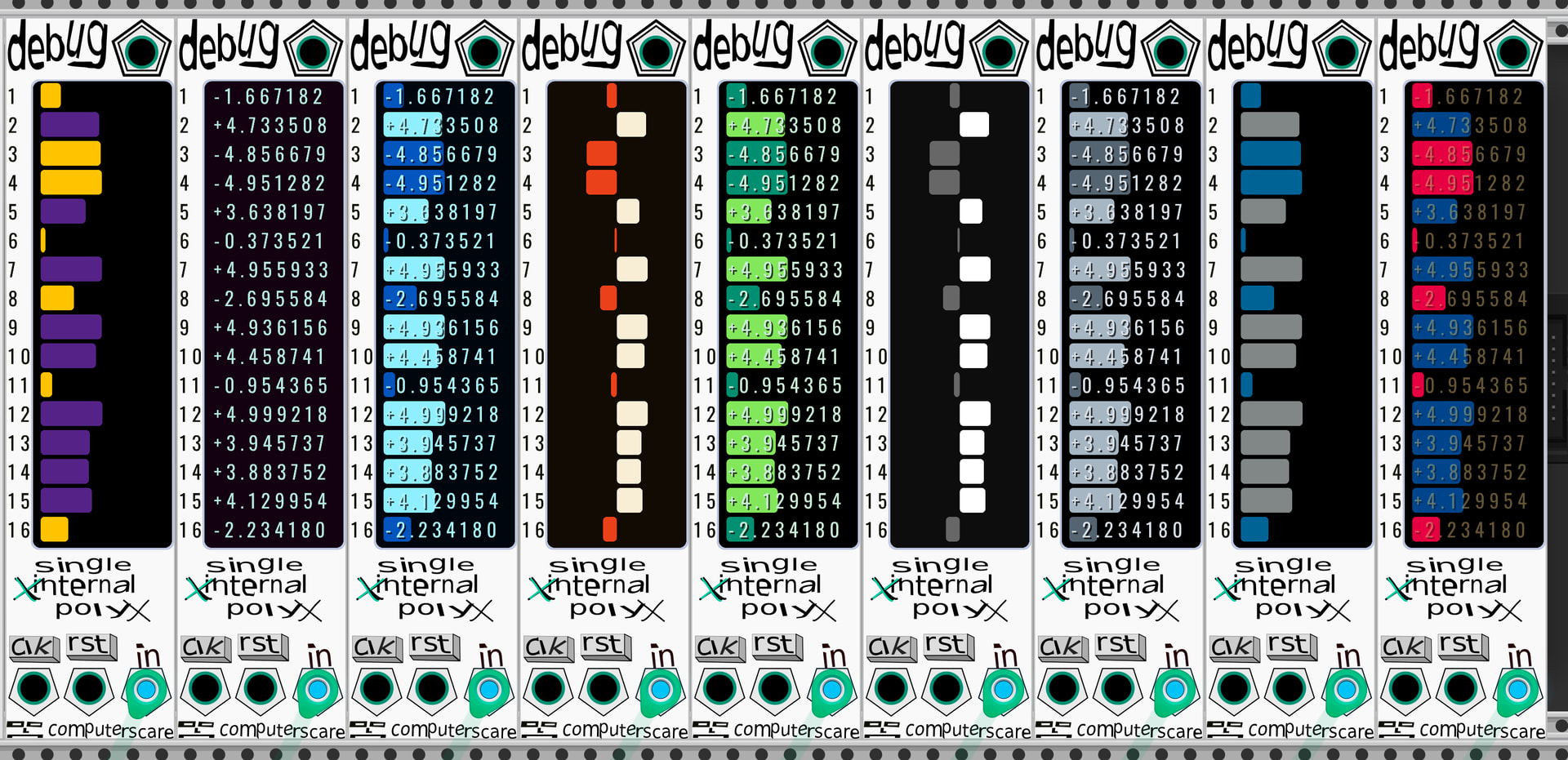

And some new features to the Debug module: added a new graphical option to render “bars” instead of or in addition to the text. And color themes:
Full v2.3.1 changelog:
# 2.3.1
Sloly Pit:
- Polyphonic splitter/router, split a poly signal into multiple poly signals
Mely Porge:
- Polyphonic merge / insert / vca utility / comparison utility
Portaloof:
- Draw all sources at full alpha
- Drag/Mouse wheel control
- Blend modes
Debug:
- Add "bars" graphic as optional additional visualization
- Additional visualization settings
Custom Blank:
- gifs continue animating during crossfade
- Slideshow keyboard toggle
Knoly Pobs:
- Add unipolar/bipolar main knob range option
Father & Son:
- Performance improvements
Horse a Doodle Doo:
- "Ch1 triggers all sequences" mode: now emits exact same gates for all channels
- Performance improvements
Any testing anybody would be willing to do would be much appreciated!
