question on MIDI prg. change

Plugins & Modules
1

I always use the VCV MIDI modules for everything. But now I’d like to send MIDI programme change to a device. Is there any module you can recommend?

2
3

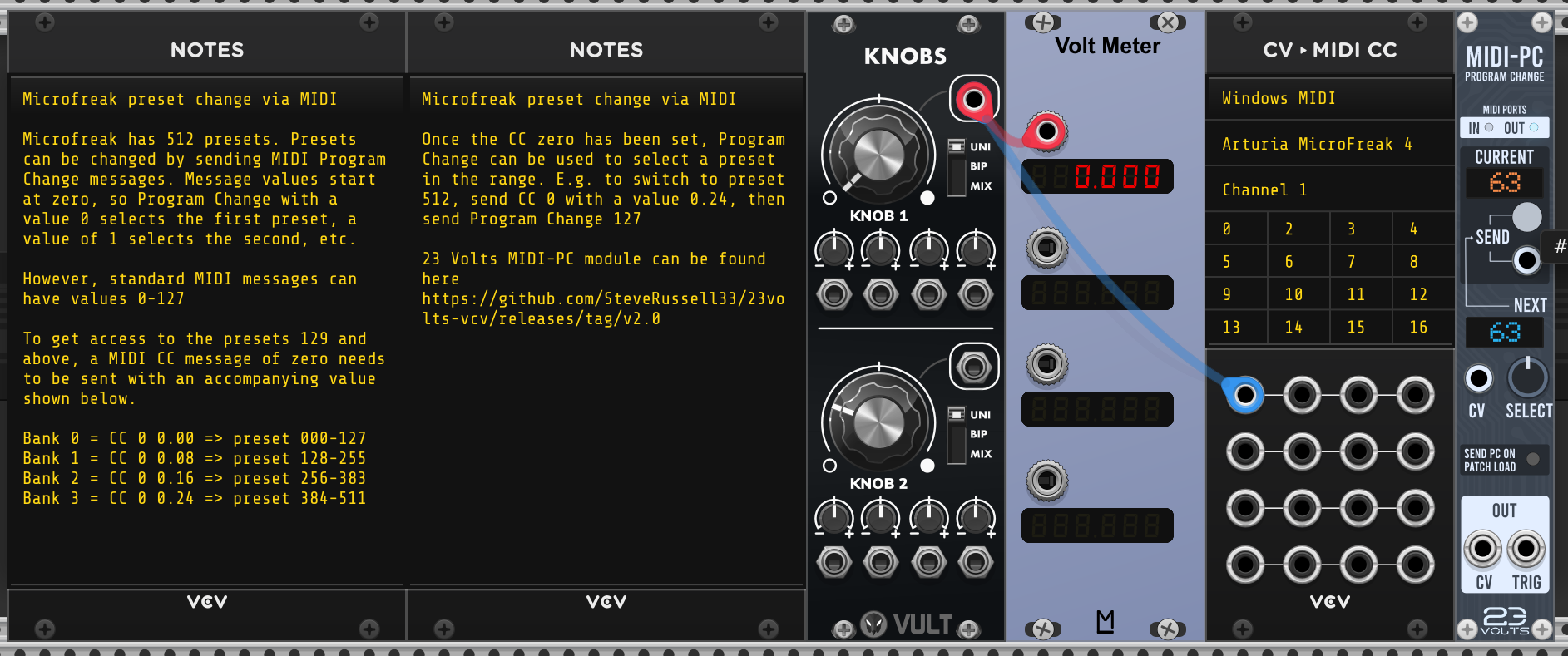

Here is how I access the preset banks of the Arturia Microfreak. You have to set CC0 to a particular voltage then the Program Change will affect the appropriate bank

image1885×789 296 KB

4

I grabbed the 23Volts collection from GitHub and installed manuallly into VCV. Sending program changes to my hardware is just nuts, freakin nuts!

Wish it could break the Bank barrier, but otherwise…

  • Paul
5

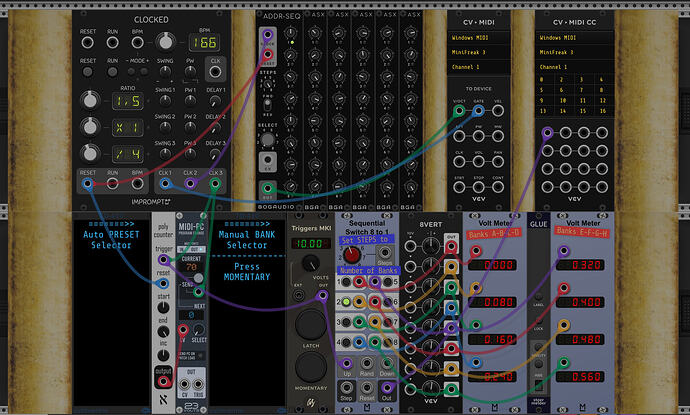

Thanks to Paul Piko’s tip, above, I put together a simple patch to allow manual stepping thru the banks (Selectable from 1 to 8), while sequencing all the presets of the current one.

VCV MiniFreak Player
VCV MiniFreak Player1920×1155 504 KB

6

…and if I reset the MIDI-CC from 0 to 32 and Sequential Switch STEPS = 8, it controls my ASM HydraSynth Explorer 888! Double thanks to Paul Piko!

7

That’s great :slight_smile:
